Reliable Energy for Home, Business, and the Grid

PuREPower Products - From Micro to Macro

PuREPower Home

Enjoy uninterrupted power, seamless integration and lower electricity bills

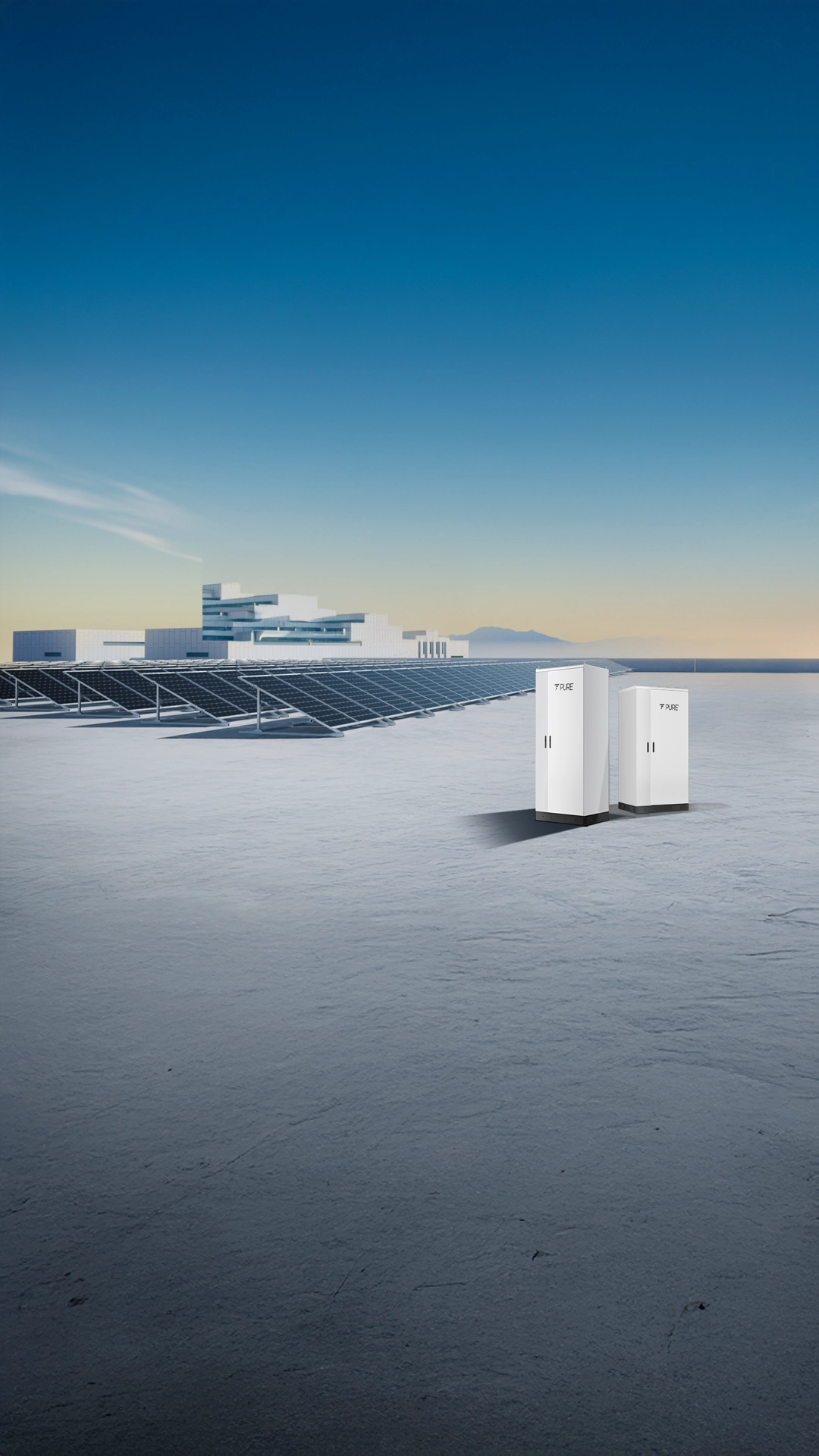

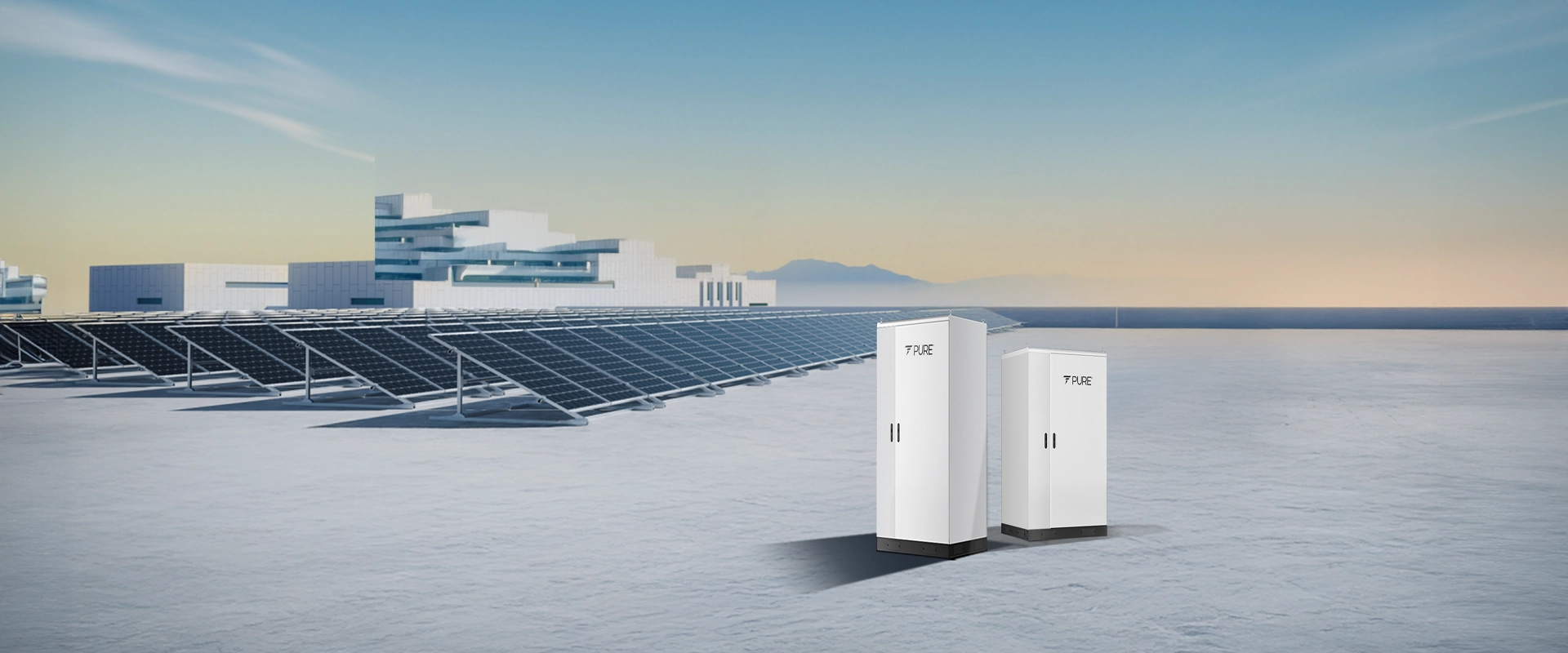

PuREPower Commercial

Scalable and efficient energy storage products for your commercial success.

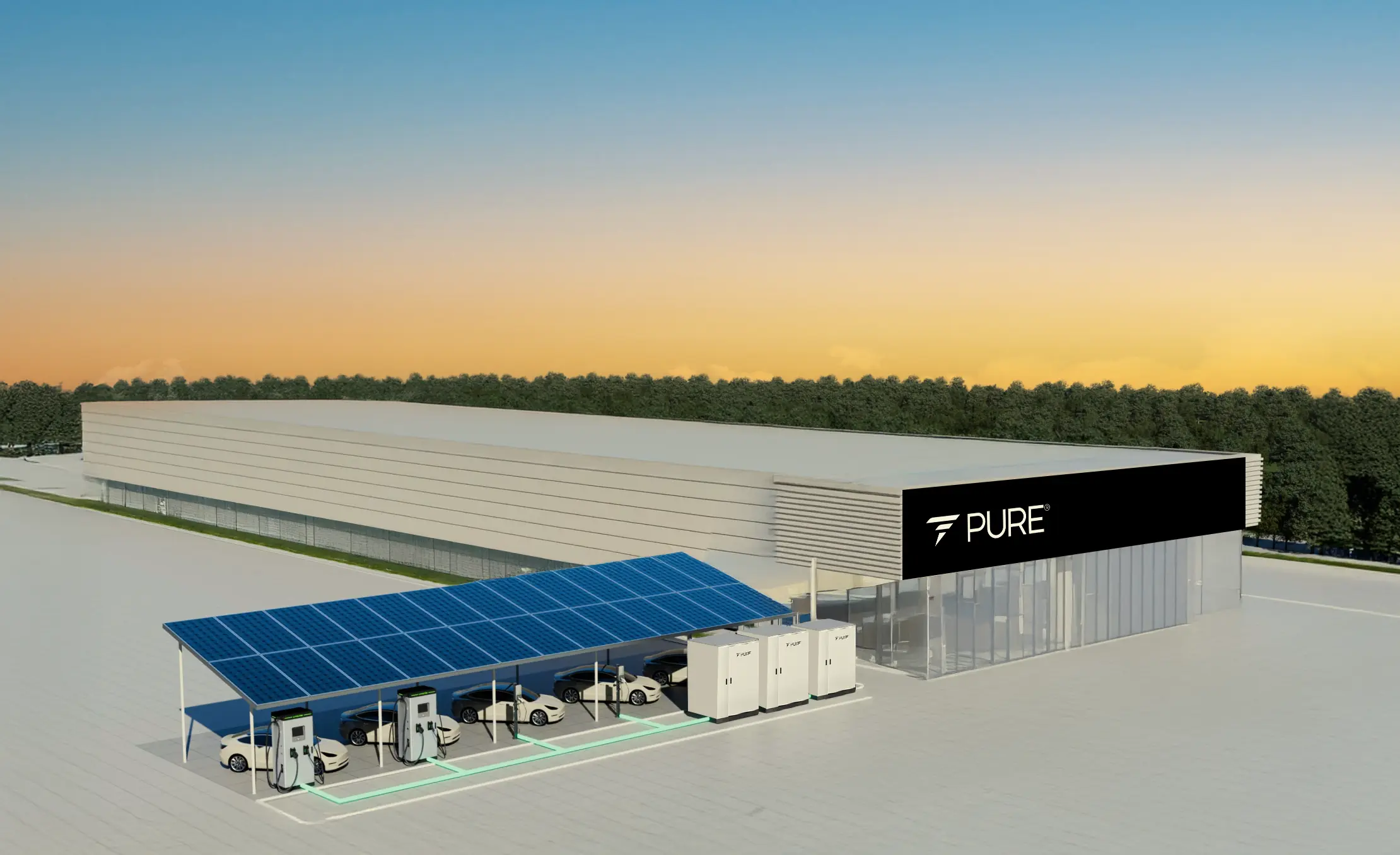

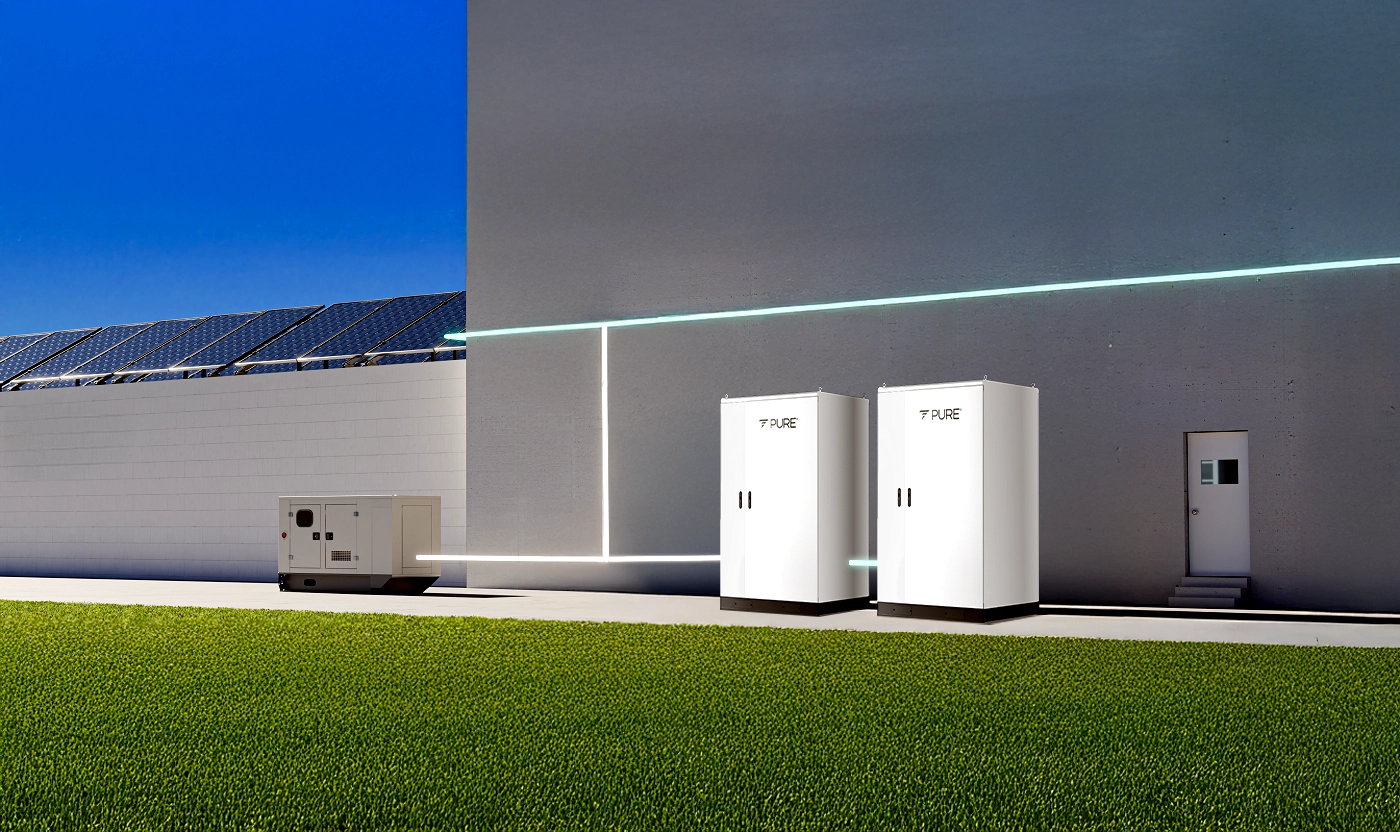

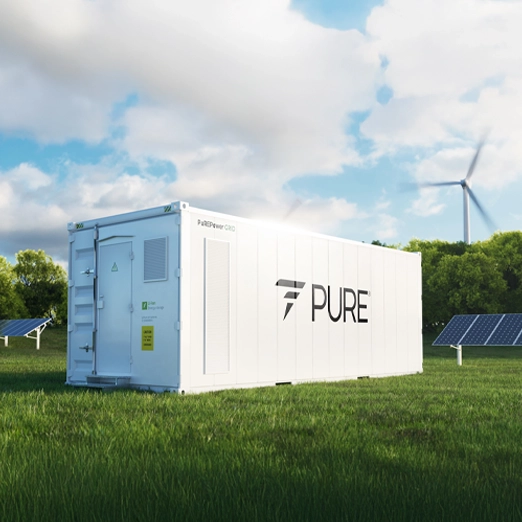

PuREPower Grid

Advanced energy storage products for a stable and sustainable Indian grid.

Why PuREPower Commercial?

Slash peak load charges, maximize solar efficiency, and forget about maintenance. Store energy smartly, Reduce diesel consumption, use it powerfully, and enjoy a 10-year warranty. It's not just energy storage; it's a strategic advantage for your business

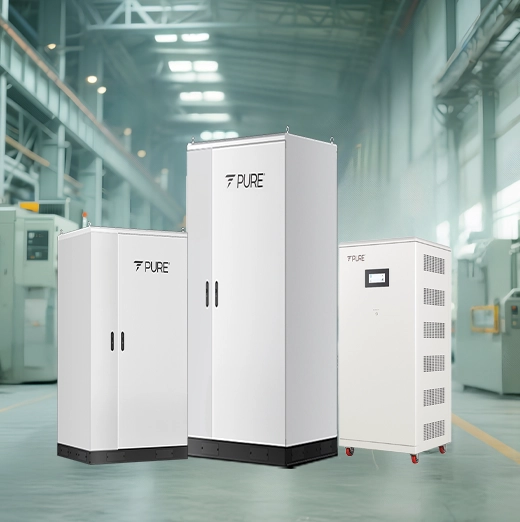

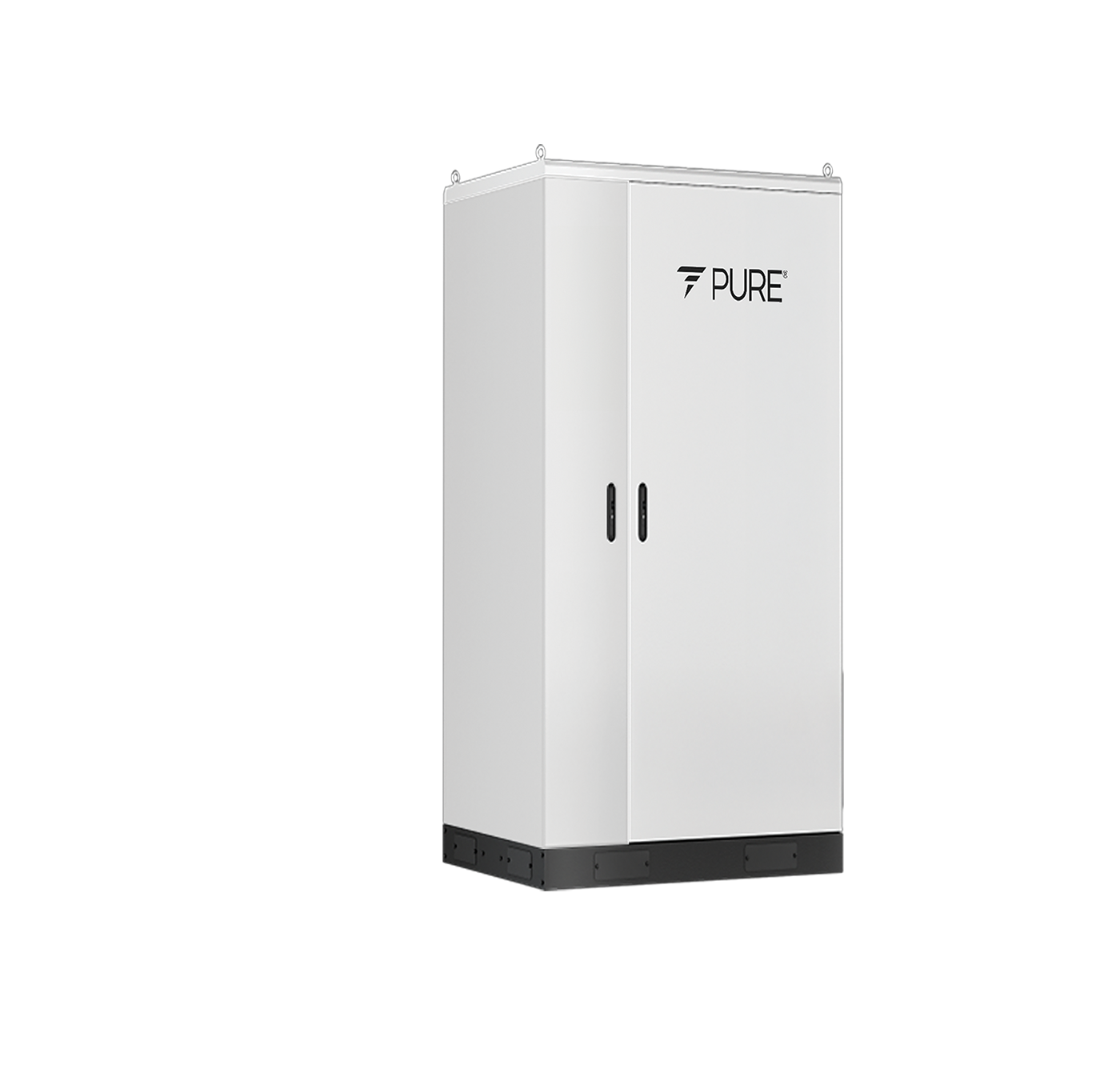

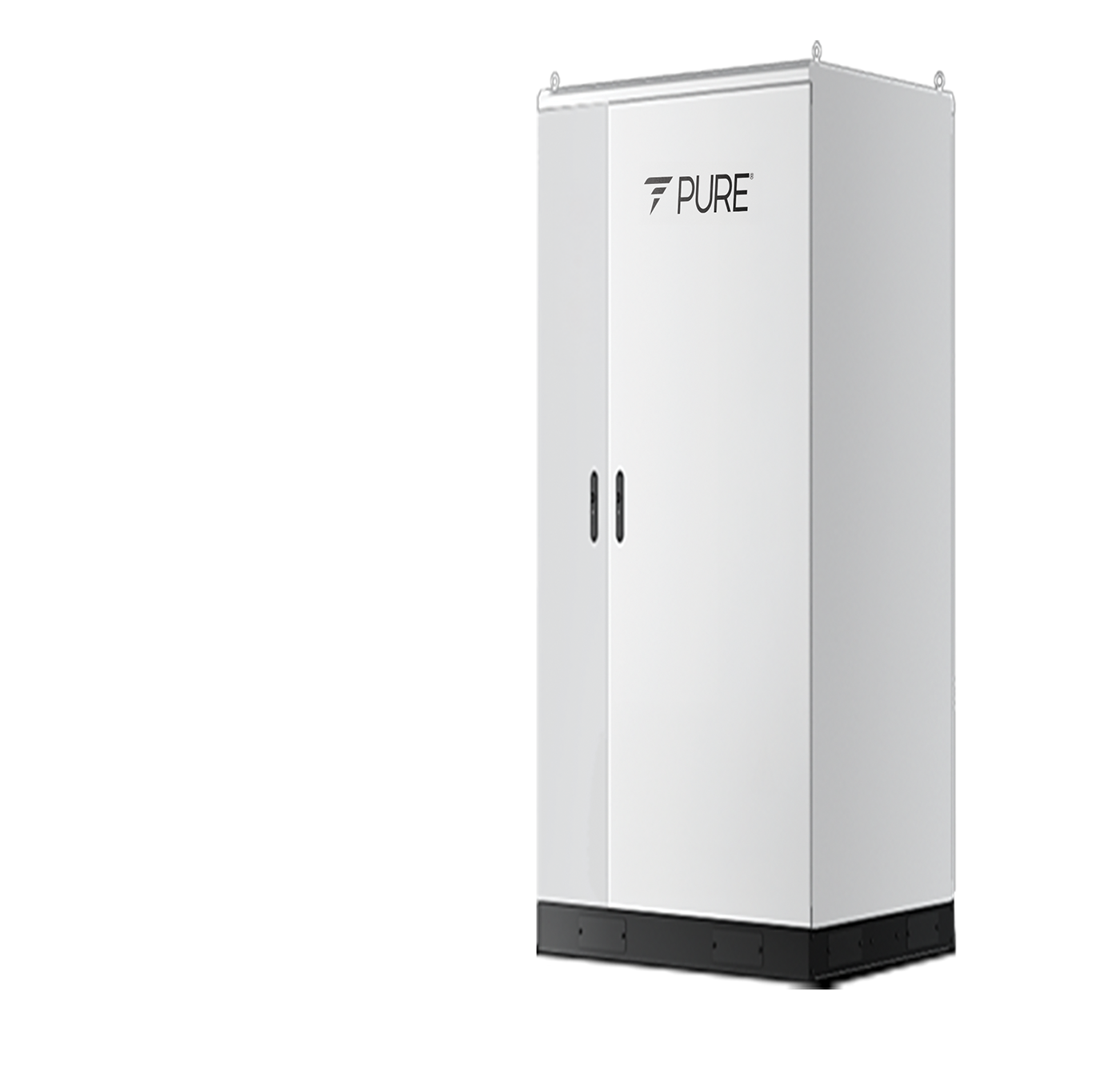

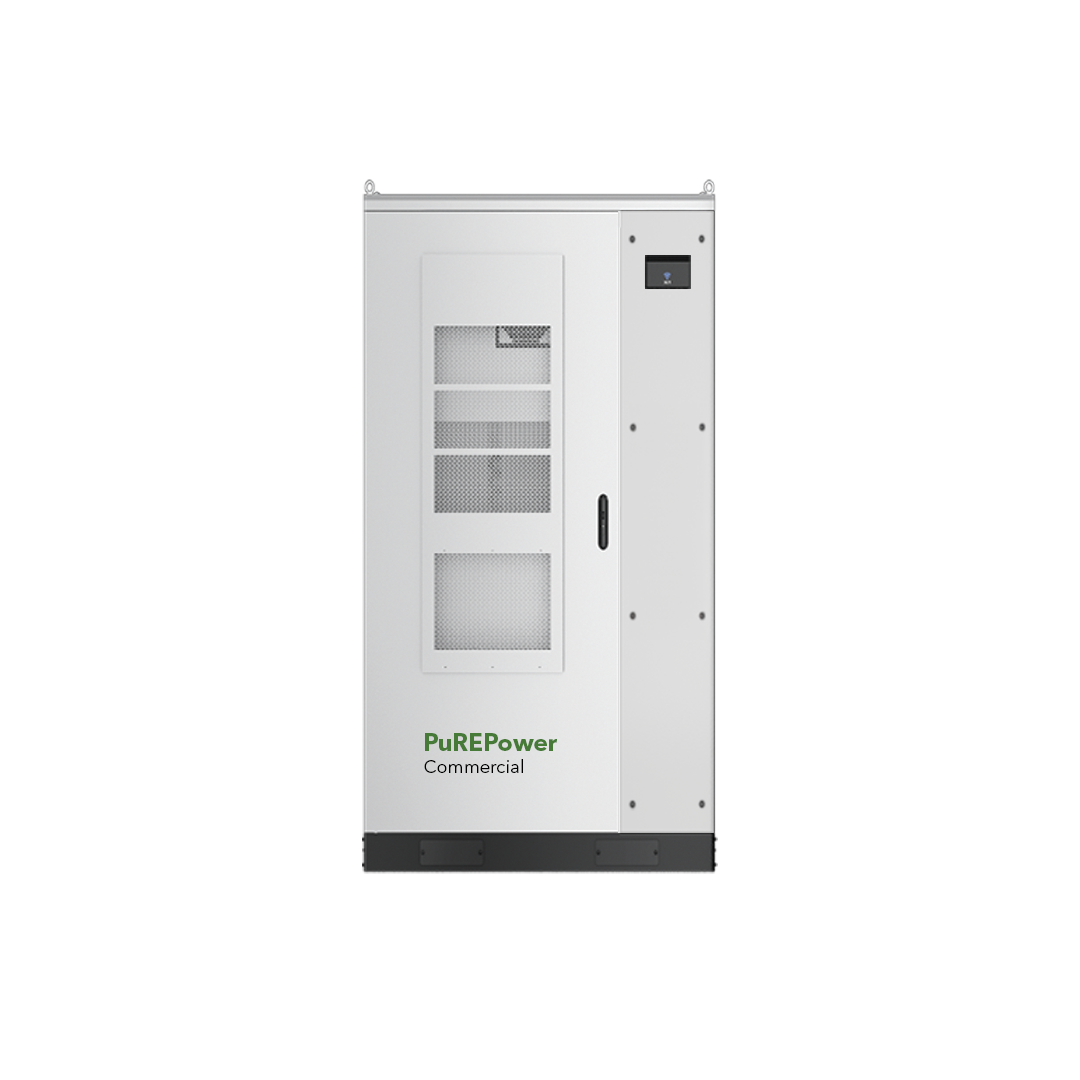

PuREPower Commercial

  • Ace
  • Rise
  • Octane
Learn More

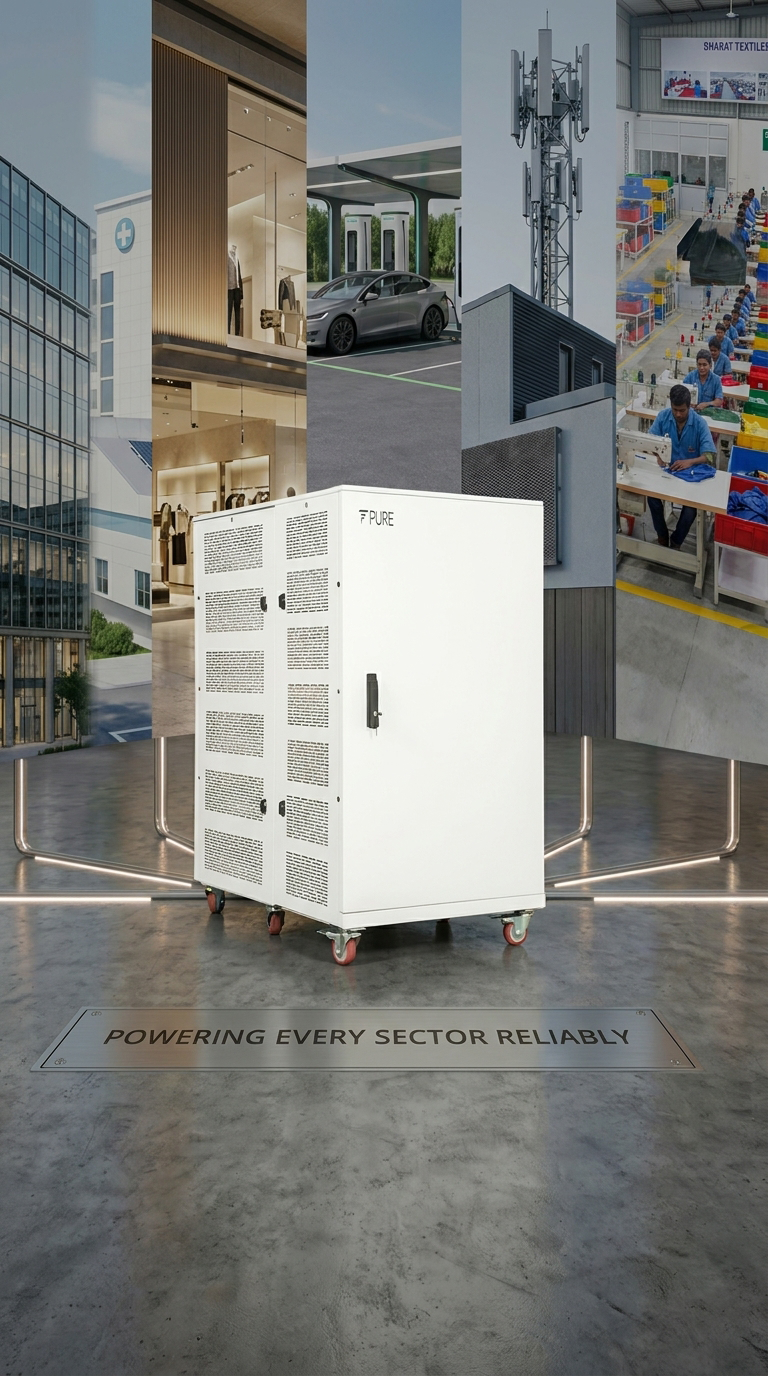

Powering Every Sector Reliably
powering-image

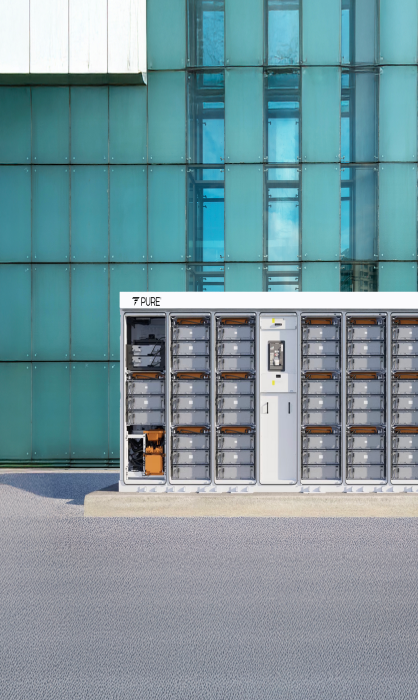

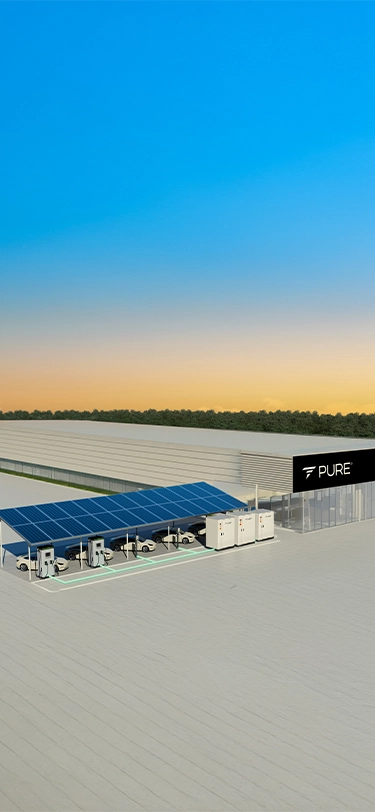

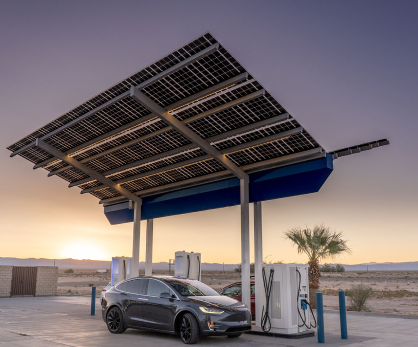

PuREPower Commercial adapts to diverse industries: uninterrupted power for offices, critical backup for hospitals, Building revenues for EV Charging Stations,seamless operations for retail and hospitality, and reliable support for telecom and communities. Tailored solutions empower businesses across all sectors

powering
powering

PuREPower Commercial Specifications

Ace - 30 KVA

  • Rated Power
    30000W

  • INPUT

    Voltage
    3 x 415 VAC
    Selectable Voltage Range
    155-483 VAC
    Frequency Range
    50 Hz/60 Hz (Auto sensing)

  • OUTPUT

    AC Voltage Regulation (Battery Mode)
    415VAC ± 5%
    Surge Power
    60000VA
    Efficiency (Peak)
    ~~94%
    Switching Modes
    On Grid /Off Grid/Hybrid(Optional)
    Transfer Time
    10 ms
    Waveform
    Pure sine wave

  • SOLAR CHARGER & AC CHARGER

    Solar Charger Type
    MPPT
    No. of MPPTs
    6
    Maximum PV Array Open Circuit Voltage
    450 VDC
    Maximum PV Array Power
    6 X 5500W
    Maximum PV Input Current
    6X 27 A
    MPP Range @ Operating Voltage
    90 ~ 450VDC
    Maximum Solar Charge Current
    450A
    Maximum AC Charge Current
    450A
    Maximum Charge Current
    450A

  • BATTERY

    Battery Cell Technology
    Lithium Ion
    Qty. of Batteries
    6
    Nominal Voltage
    48V
    Battery Capacity
    30kW
    Max. Continuous charging Current
    40A
    Max. Continuous  Discharging Current
    90A X 7
    Full Charging Voltage
    54.3V
    Full Discharging Voltage
    40V
    Max. Parallel Unit
    15

  • Protection

    Protection
    5th Gen BMS, Breaker
    Anti-islanding Protection
    Integrated
    AC Over Current Protection
    Integrated
    Output short circuit
    Integrated
    Overload Protection
    Integrated
    Battery voltage too low
    Integrated
    Temperature too high
    Integrated
    Input voltage out of range/Ripple too high
    Integrated
    Fan block
    Integrated
    IP Protection
    IP65

General Data

  • Dimension,  W x D x H (mm)
    850 x 650 x 1550
    Installation Style
    Floor standing
    Certifications
    EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
  • Cooling concept
    Advanced Nano PCM combined with forced convection
    Operating Temperature Range
    -10°C ~ 60°C*
  • LCD display (Touch Screen)
    Operating mode/load/input/output, etc
    Noise
    <50dB
  • PV connection
    MC4 connector
    Warranty
    5 years
    Extended Warranty
    12 years
  • AC connection
    Terminal connectors
    Net Weight (kg)
    460 ± 10 Kgs
  • Topology
    High frequency isolation
    Communication Interface
    BMS, Dry-contact, CAN, Bluetooth, Wi-Fi, AI Cloud

Rise - 60 KVA

  • Rated Power
    60000W

  • BATTERY INPUT

    Battery Type
    Lithium Ion
    Battery Minimum Voltage (V)
    576
    Battery Maximum Voltage (V)
    806
    Battery Capacity ( kWh)
    60
    Max. Charging/Discharging Current (A)
    120
    Max. Charging/Discharging Power (kW)
    62.5
    Charging Curve
    3 Stages/Equalization

  • PV STRING INPUT

    Max. DC Input Power (kW)
    78
    PV Input Voltage (V)
    800 (160-1000)
    MPPT Range (V)
    200-850
    Start-up Voltage (V)
    160
    PV Input Current (A)
    36+36+36+36+36
    Max. PV Isc (A)
    55+55+55+55+55
    No. of MPPT Trackers
    5
    No. of Strings per MPPT Trackers
    2+2+2+2+2

  • AC OUTPUT

    Rated AC Output and UPS Power (kW)
    60
    Max. AC Output Power (kW)
    66
    Peak Power (off grid) (kW)
    1.5 times of rated power 10s
    AC Output Rated Current (A)
    87
    Max. AC Current (A)
    95.8
    Max. Continuous AC Passthrough (A)
    200
    Output Frequency and Voltage (V)
    50/60Hz 230/400VAC 220/380
    Grid Type
    Three phase
    Current Harmonic Distortion
    THD <3%<

  • EFFICIENCY

    Max. Efficiency
    ~~97.6%
    MPPT Efficiency
    ~~99%

  • PROTECTION

    PV Input Lightning Protection
    Yes
    Anti-Islanding Protection
    Yes
    PV String Input Reverse Polarity Protection
    Yes
    Over Current Protection
    Yes
    Output Shorted Protection
    Yes
    Temperature protection
    Yes
    Output Over Voltage Protection
    DC Type II/AC Type III
    DC switch
    Yes

  • GENERAL

    Topology
    Transformer less
    Working temperature
    Full power operation at or below 45°C
    IP level
    IP65
    Cooling concept-Battery
    Advanced Nano PCM combined with forced convection
    Mounting
    Ground Mount
    Cooling concept-inverter
    Intelligent air cooling
    Display Type
    Colorful touch LCD
    Working altitude
    <12W
    Dimession, W x D x H (mm)
    (1300 x 800 x 1800)
    Net Weight (kg)
    685 ± 10 Kgs

  • CHARACHTERISTICS

    AC connector
    OT terminal
    Communication mode
    Ethernet, RS485, CAN

  • CERTIFICATIONS AND STANDARDS

    Grid Regulation
    CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
    Safety Regulation
    IEC/EN62109-1, IEC/EN62109-2
    EMC
    IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4

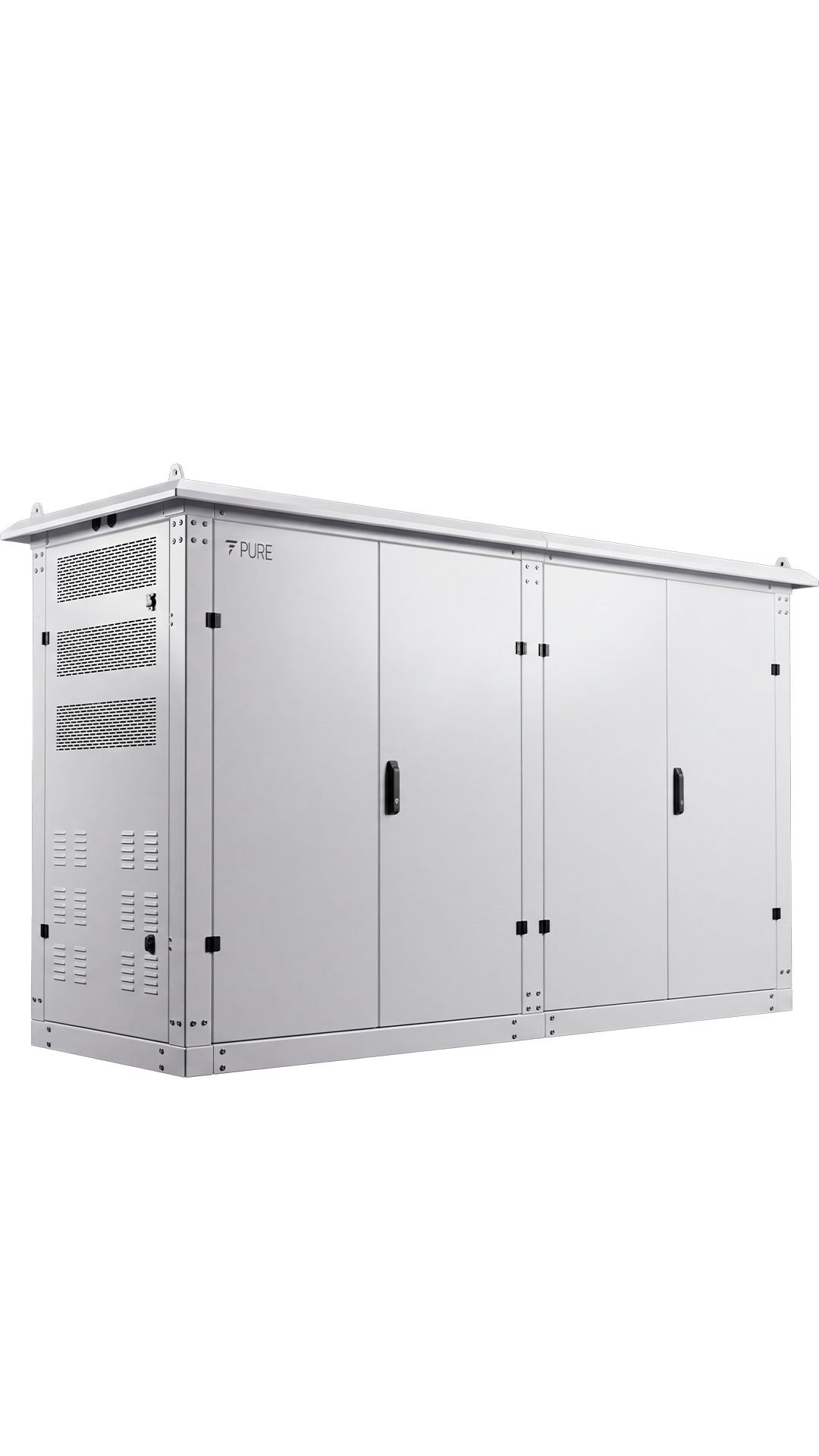

Octane - 120 KVA

  • Rated Power
    120000W

  • BATTERY INPUT

    Battery Type
    Lithium Ion
    Battery Minimum Voltage (V)
    576
    Battery Maximum Voltage (V)
    806
    Battery Capacity ( kWh)
    120
    Max. Charging/Discharging Current (A)
    240
    Max. Charging/Discharging Power (kW)
    125
    Charging Curve
    3 Stages/Equalization
    Quantity of Batteries
    12 Nos

  • PV STRING INPUT

    Max. DC Input Power (kW)
    156
    PV Input Voltage (V)
    800 (160-1000)
    MPPT Range (V)
    200-850
    Start-up Voltage (V)
    160
    PV Input Current (A)
    (36+36+36+36+36) x 2
    Max. PV Isc (A)
    (55+55+55+55+55) x 2
    No. of MPPT Trackers
    10
    No. of Strings per MPPT Trackers
    (2+2+2+2+2) x 2

  • AC OUTPUT

    Rated AC Output and UPS Power (kW)
    120
    Max. AC Output Power (kW)
    132
    Peak Power (off grid) (kW)
    1.5 times of rated power 10s
    AC Output Rated Current (A)
    174
    Max. AC Current (A)
    191.6
    Max. Continuous AC Passthrough (A)
    400
    Output Frequency and Voltage (V)
    50/60Hz 230/400VAC 220/380
    Grid Type
    Three phase
    Current Harmonic Distortion
    THD<3%

  • EFFICIENCY

    Max. Efficiency
    ~~97.6%
    MPPT Efficiency
    ~~99%

  • PROTECTION

    PV Input Lightning Protection
    Yes
    Anti-Islanding Protection
    Yes
    PV String Input Reverse Polarity Protection
    Yes
    Over Current Protection
    Yes
    Output Shorted Protection
    Yes
    Temperature protection
    Yes
    Output Over Voltage Protection
    DC Type II/AC Type III
    DC switch
    Yes

  • GENERAL

    Topology
    Transformer less
    Working temperature
    Full power operation at or below 45°C
    IP level
    IP65
    Cooling concept-Battery
    Advanced Nano PCM combined with forced convection
    Mounting
    Ground Mount
    Cooling concept-inverter
    Intelligent air cooling
    Display Type
    Colorful touch LCD
    Working altitude
    <12W
    Dimession, W x D x H (mm)
    (2500 x 800 x 1800)
    Net Weight (kg)
    1300 ± 10 Kgs

  • CHARACHTERISTICS

    AC connector
    OT terminal
    Communication mode
    Ethernet, RS485, CAN

  • CERTIFICATIONS AND STANDARDS

    Grid Regulation
    CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
    Safety Regulation
    IEC/EN62109-1, IEC/EN62109-2
    EMC
    IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
App

Power at Your Fingertips

Monitor, control, and optimize your energy usage anytime with the PuREPower App. Real-time insights and smart automation ensure you get the most out of your stored energy.

Key Features

  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features
  • Key Features
    Key Features

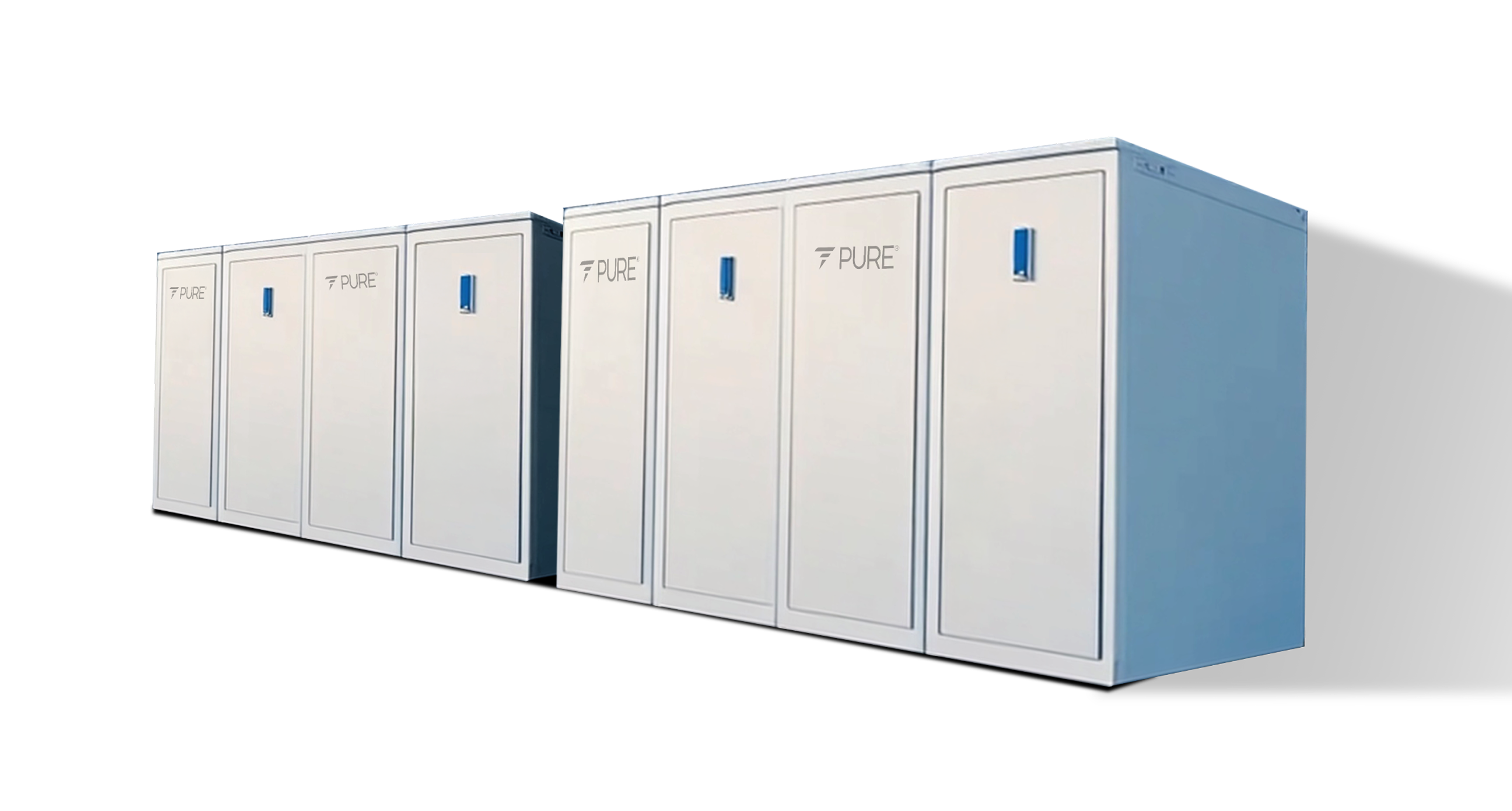

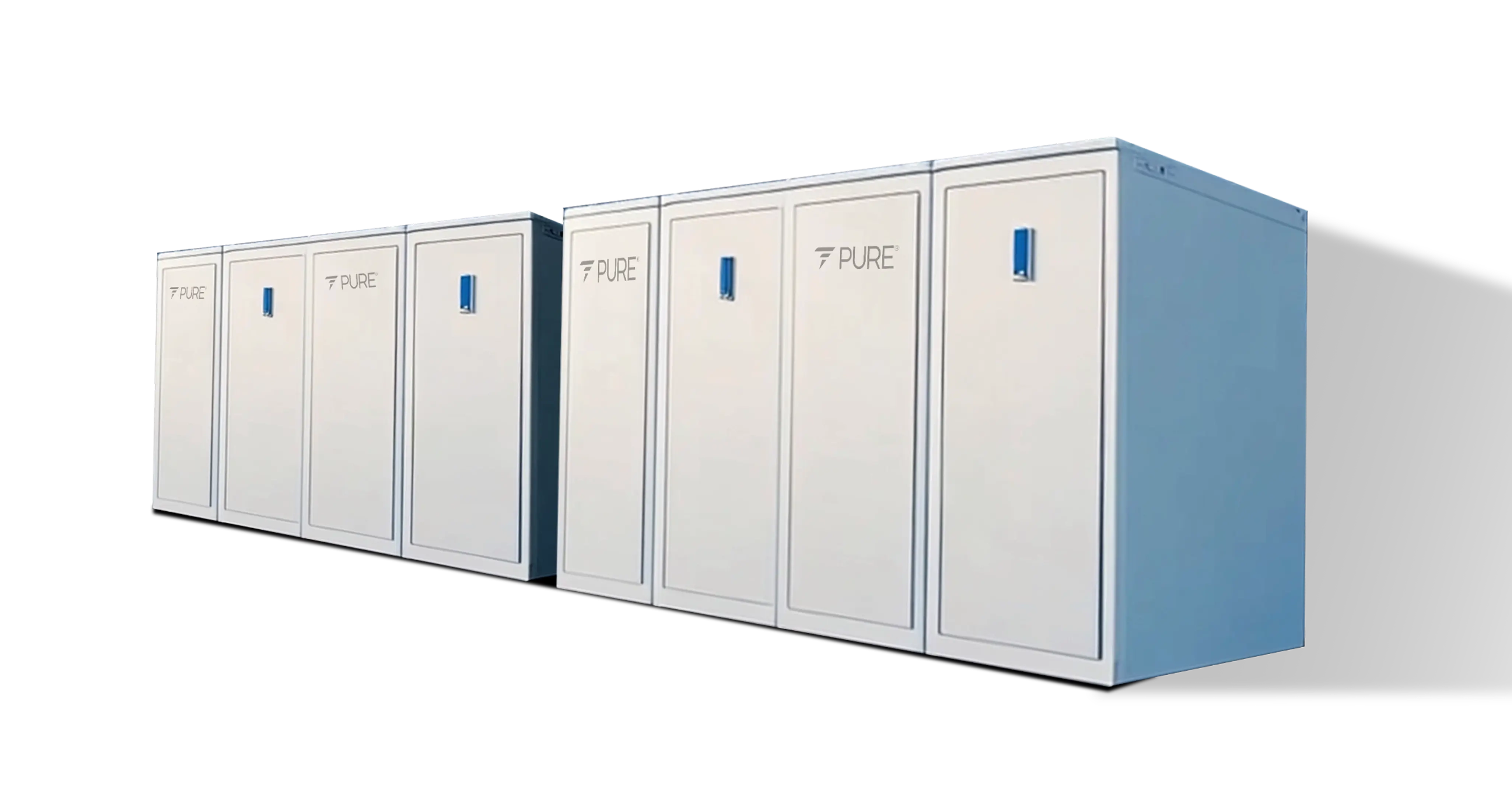

Power Beyond Expectations

Get started today—place your order or book a call with a PuREPower advisor to explore the best energy solution for you.
